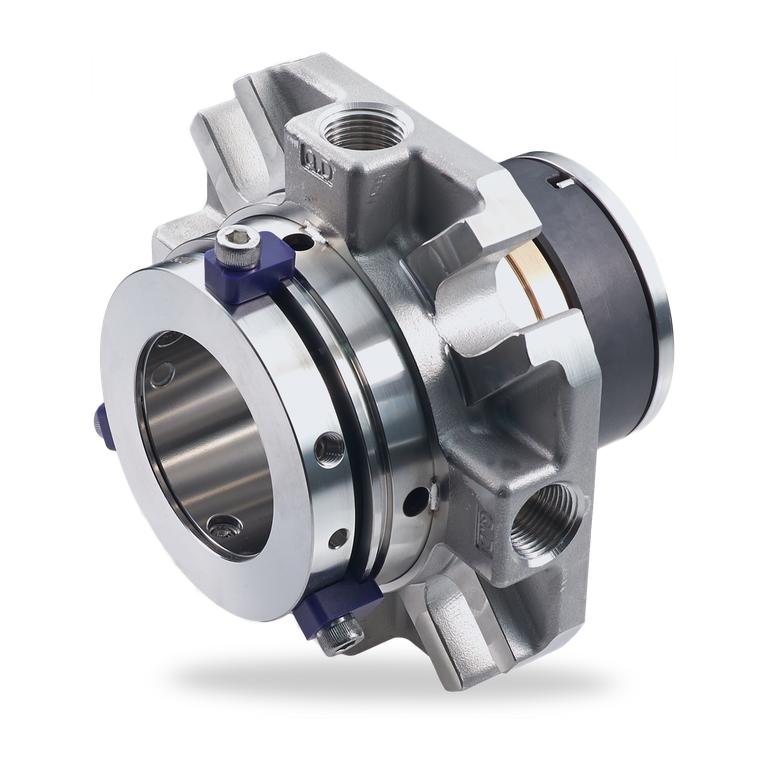

MD251

Request product

MD251

MD251
Request product

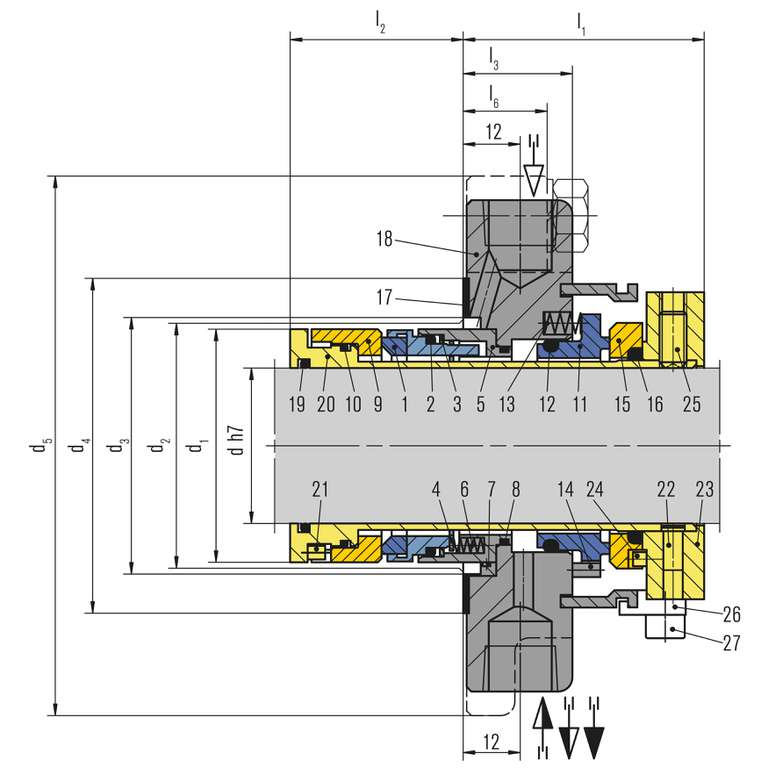

Item Description
1, 11 Seal face
2, 8, 10, 12, 16, 19 O-Ring
3 Spacer
4 Thrust ring
5 Collar
6, 13 Spring
7, 14, 21, 22, 24 Pin
9, 15 Seat
17 Gasket
18 Seal cover
20 Shaft sleeve
23 Drive collar
25 Set screw
26 Assembly fixture
27 HSH cap screw

MD251

Features

  • Cartridge design
  • Balanced
  • Double seal
  • Independent of direction of rotation
  • Springs do not contact the liquid
  • Inboard seal can withstand both forward and back pressure

Advantages

  • Equipped with flushing, quenching, and drainports as standard
  • PTFE backup ring as standard

Operating range

Pressure: p = vacuum … 16 bar (232 PSI)
Temperature:
t = -20 °C … 160 °C (-4 °F … 320 °F) (oil),
0 °C … 80 °C (32 °F … 176 °F) (water)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 1 Pa·s
Solids content: … 7 %

Materials

Seal face (inboard side): Silicon carbide (Q1)
Seal face (atmosphere side): High density carbon graphite
Seat: Silicon carbide (Q1)
Metal parts: CrNiMo steel (G)
Secondary seals: FKM (V)
