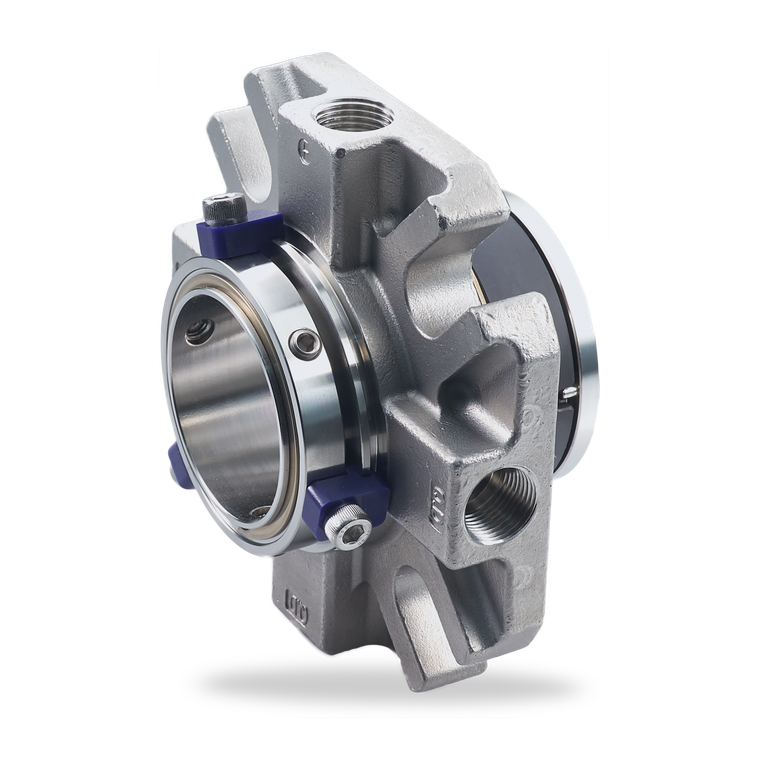

MA250 / MA251

MA250 / MA251
Request product

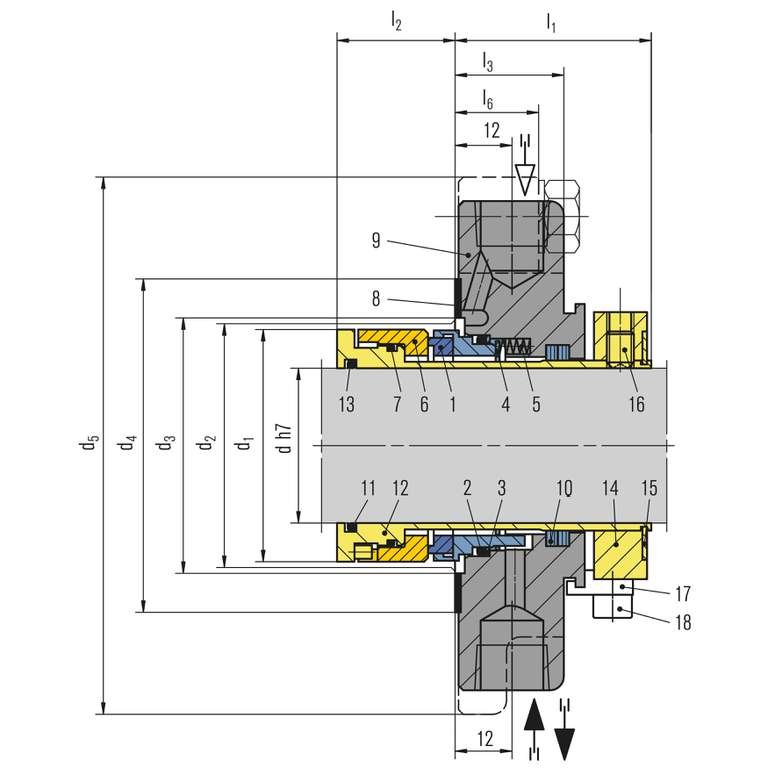

Item Description
1 Seal face
2, 7, 11 O-Ring
3 Spacer
4 Thrust ring
5 Spring
6 Seat
8 Gasket
9 Seal cover
10 Bushing
12 Shaft sleeve
13 Pin
14 Drive collar
15 Retaining ring
16 Set screw
17 Assembly fixture
18 HSH cap screw

MA250 / MA251

Features

  • Cartridge design
  • Balanced
  • Independent of direction of rotation
  • Stationary, inside mounted type
  • Springs do not contact the liquid

Advantages

  • Equipped with flushing, quenching, and drainports as standard
  • PTFE backup ring as standard

Operating range

MA250:
Pressure: p = 0 … 16 bar (232 PSI)
Temperature:
t = -20 °C … 160 °C (-4 °F … 320 °F) (oil),
0 °C … 60 °C (32 °F … 140 °F) (water)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 0.5 Pa·s
Solids content: … 0.3 %

MA251:
Pressure: p = 0 … 16 bar (232 PSI)
Temperature:
t = -20 °C … 160 °C (-4 °F … 320 °F) (oil),
0 °C … 60 °C (32 °F … 140 °F) (water)
Sliding velocity: vg = 20 m/s (66 ft/s)
Viscosity: … 1 Pa·s
Solids content: … 7 %

Materials

Seal face (MA250): High density carbon graphite
Seal face (MA251): Silicon carbide (Q1)
Seat (MA250/MA251): Silicon carbide (Q1)
Metal parts: CrNiMo steel (G)
Secondary seals: FKM (V)
